Warehouse 150w SMD3030 125LM/W UFO LED High Bay Light

Product Categories
BISPARK GROUP LIMITED
Contact Now

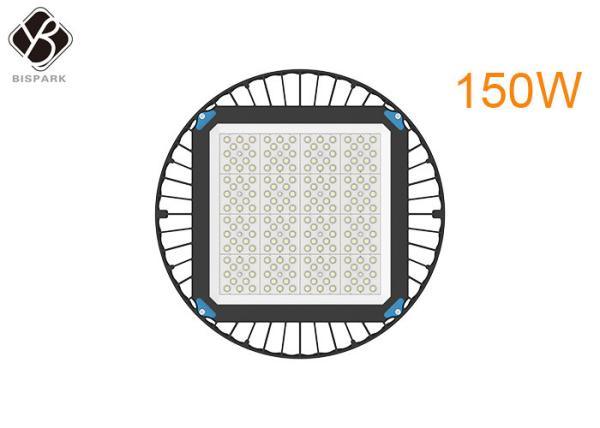

Warehouse 150w SMD3030 125LM/W UFO LED High Bay Light

  • 1
  • 2
  • 3

Brand Name : BISPARK

Model Number : HELIOS

Certification : CE RoHS SAA UL DLC CB TUV NOM

Place of Origin : Guangdong,China

MOQ : negotiation

Price : 67.5-103.8 USD

Payment Terms : T/T, Western Union, D/A, D/P PayPal, MoneyGram

Supply Ability : 20000 PCS per Month

Delivery Time : 7-9 days for 1000pcs

Packaging Details : 1PC/Carton

Material : Die-casting Aluminum

Power : 150w

Input Voltage : 90-305V/480V AC/347V

Chip : Lumileds SMD3030

Beam Angle : 30°、60°、90°、120°、TYPE3

Operating Temp. : -30-45 ℃

CCT : 2700-6500K

Luminous Efficiency : 125LM/W

IP Rate : IP66

Life Span : 61,000 Hours

Warranty : 7 Years

Others : OEM/ODM

Contact Now

 UFO LED High Bay Light explosion proof LED industrial warehouse light Warehouse UFO LED High Bay Lighting

Patent desinged UFO LED high bay light ,

1. Private mould, slim and elegant appearance 50w 100w 150w 200w 250w, 2700K-6500K

2. Different Beam Angle Optional 30°/60°/90°/120°are available
3. Module design - easy maintenance
4. Flat honeycomb design - good heat dissipation



Item Number NL-HELIOS-UHB50 HELIOS-UHB100 HELIOS-UHB150 HELIOS-UHB200 HELIOS-UHB240
Wattage 50W 100W 150W 200W 240W
Lumen Output 6250lm 12500lm 18750lm 25000lm 30000lm
LED Quantity 48pcs 108pcs 192pcs 240pcs 240pcs
Size(MM) φ215*97 φ290*153 φ362*153 φ400*163 φ400*163
LED Chip Lumileds 3030
Luminous Efficacy 125LM/W
CCT 2700K-6700K
CRI ≥80Ra(2700-4000K) , ≥72Ra(4500-6700K)
Beam Angle  30° / 60° / 90° /120° / TYPE3
IP Rating IP66
Working Temperature -35℃ to +55℃
Input Voltage AC100-277V/347V/480V, 50/60Hz, ＞0.92
Warranty5  years
Lifespan ＞50,000hrs
Material Die-casting Aluminum housing+PC lens

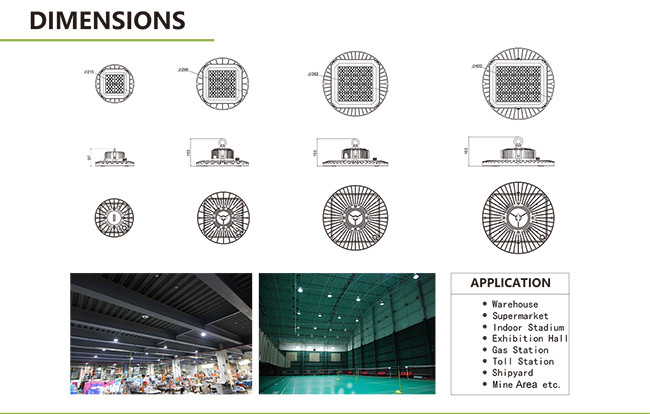

1. Dimensions



Warehouse 150w SMD3030 125LM/W UFO LED High Bay Light

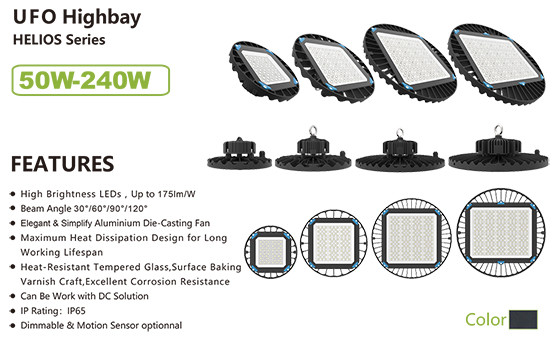

2. Features



  •  Integrated heat sink Cold forging aluminium
  • Up to 140LM/W,0-10v Dimming
  • 120-277V 120-347V & 200-480V Optional
  • Lumileds LUXEON 3030 LED • Installation: Chain mount, hook mount
  • Integrated heat sink Cold forging aluminium 100w,150w,200w and 240w
  • Working temperature: -40℃~+55℃ • IP65 Waterproof • 5 Years warranty
  • Whole die casting aluminum housing
  • Clear/Frost tempered glass
  • Good package for shipment

Warehouse 150w SMD3030 125LM/W UFO LED High Bay Light

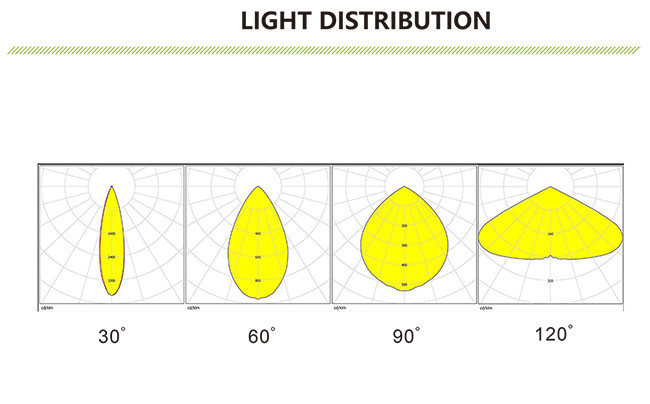

3. Beam Angle



Warehouse 150w SMD3030 125LM/W UFO LED High Bay Light

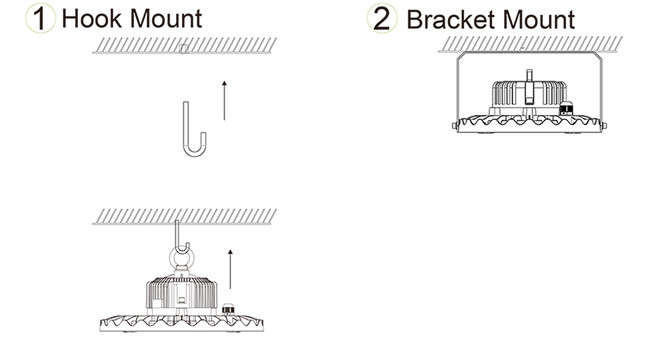

4. Installation



HELIOS-Series UFO LED high bay light has 3 kinds of installation.

Warehouse 150w SMD3030 125LM/W UFO LED High Bay Light



5. Applications



  • Parking area lighting;
  • Ceiling lighting;
  • Warehouse lighting;
  • High / low bay lighting.



Warehouse 150w SMD3030 125LM/W UFO LED High Bay Light



6. Our service


Nitelus specializing in manufacturing high quality LED UFO High Bay Lighting C3 Series,led ufo high bay,ufo led manufacturer,ufo led lights,ufo high bay light,ufo led lights for sale from china. Since 2010,10 Years LED Lighting Manufacturer.

Streamline design appearance, super thin/easy installation, less weight to save your shipping cost, extremly high brightness, final finished product's luminous can reach 125~150lm/w.



1. Any inquiries, will be replied in 24 hrs.

2. All your inquiries will be well explained by our experienced staff.

3. All after sale problems will be deal with in 24hrs.

4. OEM, ODM welcomed.

5. Distributorship is available for your unique design and some our current models.

6. We will keep secret for customer sale area,design ideas and all other private information.
